Add geographic map functionalities to your UIs to add documents and work with points, polygons & lines
Use the FrameViewer object of terminusdb-documents-ui to automatically generate forms to enter map coordinates and display/embed visual maps for those coordinates in your forms. Use the MapViewer object (View mode only) to display maps with configurable zoom and scroll functionality.
FrameViewer and MapViewer objects
Object
Modes supported
Import
Details
FrameViewer
Create
Edit
View
import {FrameViewer} from '@terminusdb/terminusdb-documents-ui'
​Generate forms and maps using FrameViewer​
MapViewer
View
import {MapViewer} from '@terminusdb/terminusdb-documents-ui'
​Display maps using MapViewer​
Generate forms and maps using FrameViewer
Use FrameViewer in Create or Edit mode to create a form and enter map coordinates respectively.
Create a form to enter map coordinates
The example below creates a form defining coordinates representing latitude and longitude as xsd:decimal fields.
let frames = {
	"@context": {
		"@base": "terminusdb:///data/",
		"@schema": "",
		"@type": "@context"
	},
	"coordinates": {
		"location": {
			"@class": "Location",
			"@subdocument": []
		}
	},
	"Location": {
		"@key": {
			"@type": "Random"
		},
		"@subdocument": [],
		"@type": "Class",
		"city": "xsd:string",
		"geometry_location": {
			"@class": [
				{
					"@class": "Point",
					"@subdocument": []
				}
			],
			"@type": "Optional"
		}
	},
	"Point": {
		"@key": {
			"@type": "Random"
		},
		"@subdocument": [],
		"@type": "Class",
		"coordinates": {
			"@class": "xsd:decimal",
			"@dimensions": 1,
			"@type": "Array"
		},
		"type": {
			"@id": "Point_Type",
			"@type": "Enum",
			"@values": [
				"Point"
			]
		}
  	},
  	"Point_Type": {
		"@type": "Enum",
		"@values": [
			"Point"
    	]
	}
}
​
let type = "coordinates"
let mode = "Create"
​
return <FrameViewer
    frame = {frames}
    type = {type}
    mode = {mode}/>

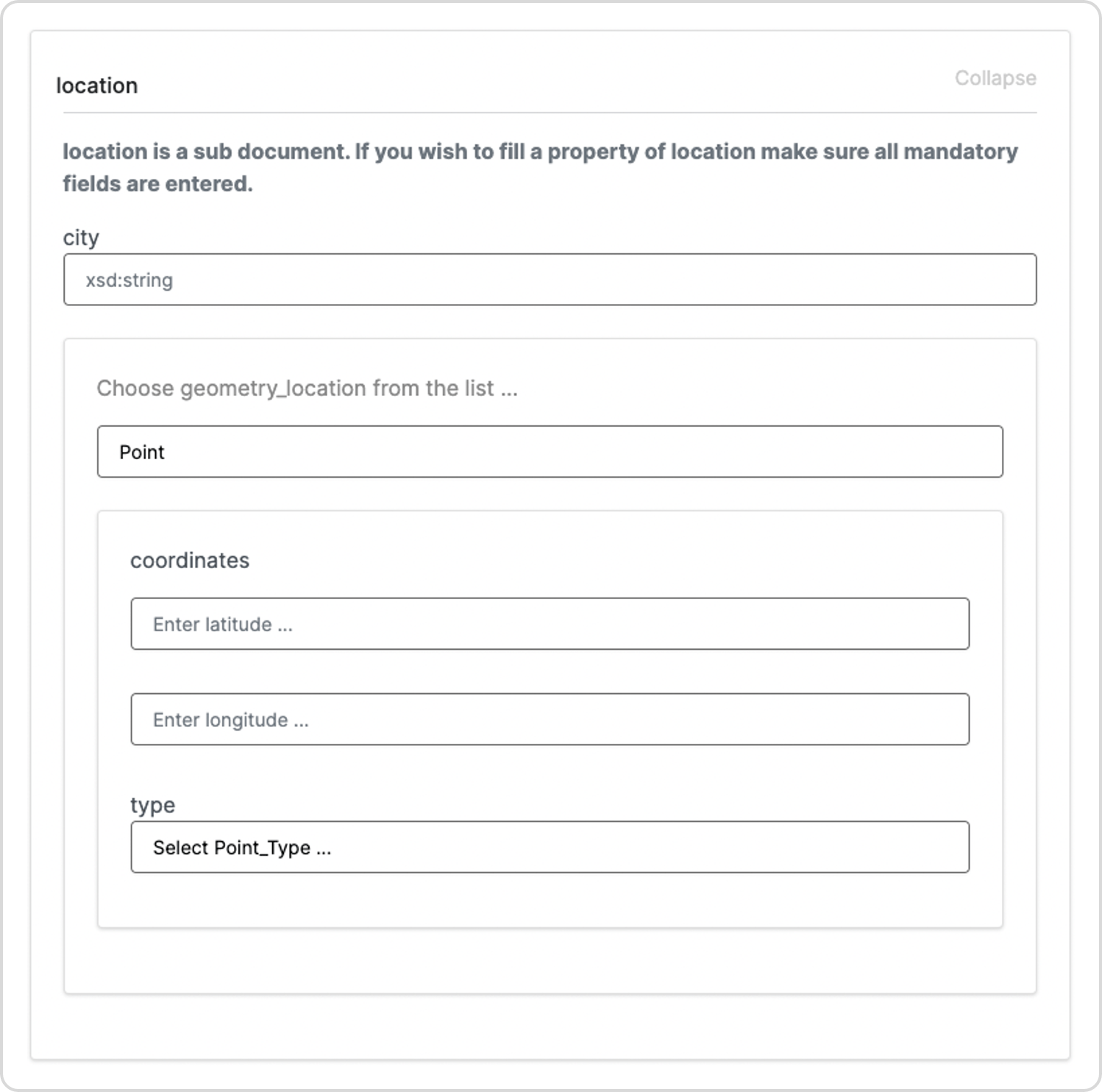

Screen-print/s of the output:
View the map
In View mode, FrameViewer displays a visual map for coordinates entered in Edit mode. In the example below, the formData parameter simulates data entered into the form in Edit mode.
// Use the `frames` definition above
​
let formData = {
	"@id": "coordinates/908cdf8db2fa9f843f063669171280eb448e3403d837cb440726ab394043e918",
  	"@type": "coordinates",
	"location": {
		"@id": "coordinates/908cdf8db2fa9f843f063669171280eb448e3403d837cb440726ab394043e918/coordinates/Location/cbf3d8956432778d2c3db84533eac02bff76326aa3407436e483361fdf55fd0c",
		"@type": "Location",
		"city": "Marigot",
		"geometry_location": {
			"@id": "coordinates/location/Location/cbf3d8956432778d2c3db84533eac02bff76326aa3407436e483361fdf55fd0c/geometry_location/Point/3ec3de24dab9a66311ff5010df341b05d67bbcd764537f6f3484a8d03d235843",
			"@type": "Point",
			"coordinates": [
				15.53743,
				-61.282
			],
			"type": "Point"
		}
	}
}
​
let type = "coordinates"
let mode = "View"
​
return <FrameViewer
    frame = {frames}
    formData = {formData}
    type = {type}
    mode = {mode}/>
Screen-print/s of the output:
Display maps using MapViewer
Use MapViewer to display maps with configurable zoom and scroll functionality.
MapViewer parameters
Parameter
Type
Description
documents
Array
TerminusDB document/s retrieved using a WOQL Query or defined in a constant.
zoom
Integer
Set the maximum zoom-in level.
scrollWheelZoom
Boolean
Enable/disable zoom in/out.
MapViewer document structure
TerminusDB documents retrieved using a WOQL query must converted to the structure below.
let docId = "id of doc ..."
let docName = "name of doc ..."
let lat = -61.23 // a valid decimal value to display latitude
let lng = 15.42 // a valid decimal value to display longitude
let docs = [
    {
        id : docId,
        name : docName,
        lat : lat,
        lng : lng
    },
    { ... },
    { ... }
]
MapViewer example
let docs = [
   {
      "id": "Asset/Communication%20tower%20near%20Good%20Hope%20",
      "lng":-61.2554,
      "name": "Communication tower near Good Hope ",
      "lat":15.4125
   },
   {
      "id": "Asset/La%20Plaine%20Police%20Station",
      "lng":-61.2416,
      "name": "La Plaine Police Station",
      "lat":15.333
   },
   {
      "id": "Asset/Mahaut%20River%20Health%20Centre",
      "lat":15.4773,
      "name": "Mahaut River Health Centre",
      "lng":-61.2516
   },
   {
      "id": "Asset/Belles%20Primary%20School",
      "lat":15.42717,
      "name": "Belles Primary School",
      "lng":-61.3403
   },
   {
      "id": "Asset/Trafalgar%20hydro%20power%20plan%20",
      "lat":15.316919,
      "name": "Trafalgar hydro power plan ",
      "lng":-61.35083
   },
   {
      "id": "Asset/Fort%20Young%20Hotel%20",
      "lat":15.296,
      "name": "Fort Young Hotel ",
      "lng":-61.38627
   },
   {
      "id": "Asset/Roseau-Canefield%20Airport",
      "lat":15.33934,
      "name": "Roseau-Canefield Airport",
      "lng":-61.39179
   },
   {
      "id": "Asset/Princess%20Margaret%20Hospital%20",
      "lat":15.30705,
      "name": "Princess Margaret Hospital ",
      "lng":-61.3847
   },
   {
      "id": "Asset/Justin%20Fadipe%20Hospital",
      "lat":15.4281,
      "name": "Justin Fadipe Hospital",
      "lng":-61.4316
   },
   {
      "id": "Asset/Dominica%20Air%20&%20Sea%20Ports%20Authority%20(DASPA)",
      "lng":-61.3881,
      "name": "Dominica Air & Sea Ports Authority (DASPA)",
      "lat":15.3124
   },
   {
      "id": "Asset/Petro%20Caribe%20Radio%20Tower",
      "lng":-61.40316,
      "name": "Petro Caribe Radio Tower",
      "lat":15.3695
   },
   {
      "id": "Asset/Portsmouth%20Town%20Council",
      "lng":-61.4553,
      "name": "Portsmouth Town Council",
      "lat":15.574671
   },
   {
      "id": "Asset/Castle%20bruce%20Electrical%20substation",
      "lat":15.4393,
      "name": "Castle bruce Electrical substation",
      "lng":-61.2607
   },
   {
      "id": "Asset/NEW%20ASSET%20",
      "lat":53.307481,
      "name": "NEW ASSET ",
      "lng":-62.954872
   },
   {
      "id": "Asset/TCD",
      "lng":-62.5449,
      "name": "TCD",
      "lat":53.3439
   }
]
​
return <MapViewer
    documents = {docs}
    zoom = {5}
    scrollWheelZoom = {true}/>

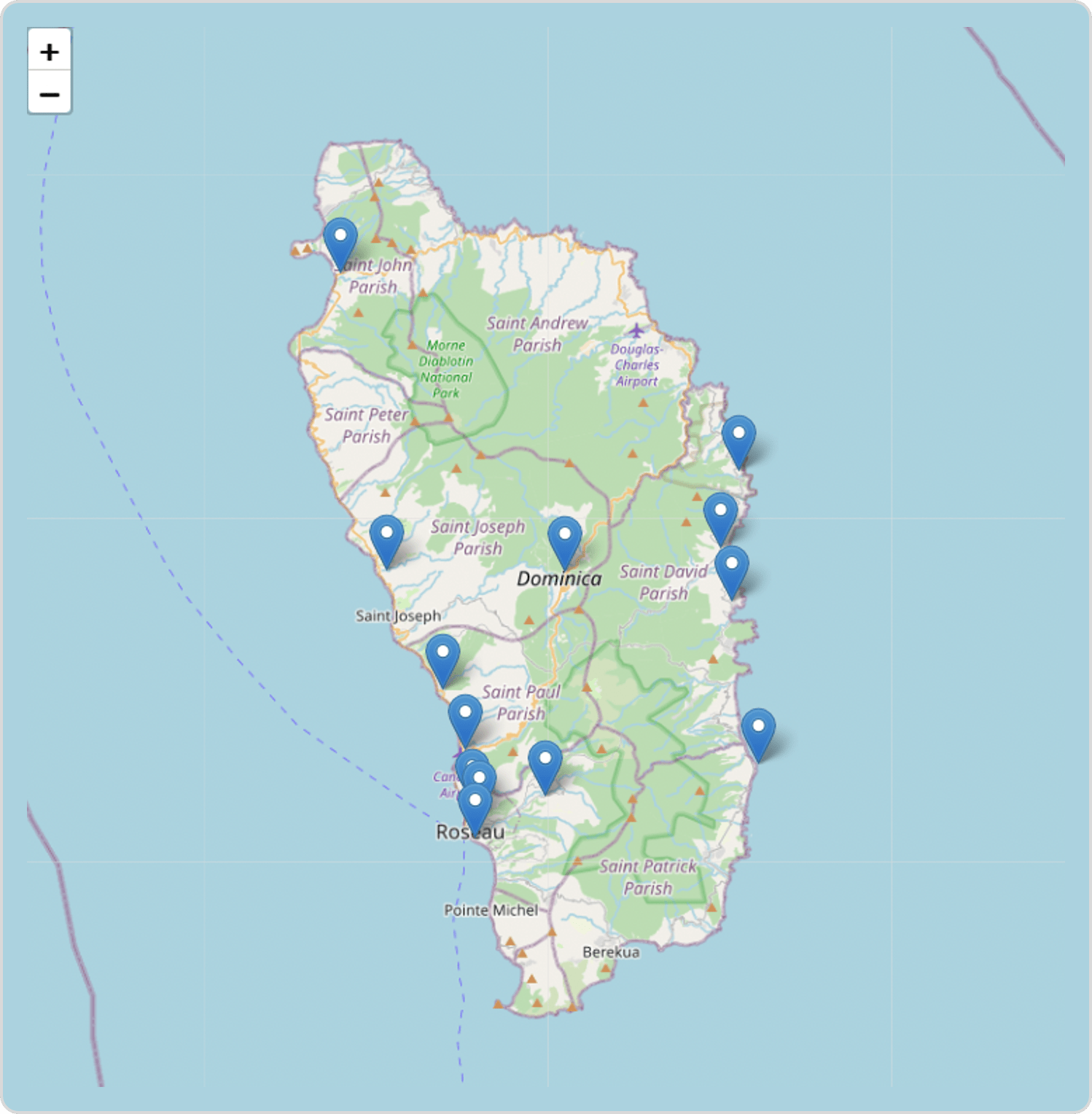

Screen-print/s of the output:
