Understand the different data types to build data driven user interfaces
The TerminusDB documents User Interface generates forms representing the properties or fields of document/s in your schema. For data entry, each field is one of several data types and is mandatory by default. Schema definitions enable the linking of documents and the specification of sets.
​To get started read the Document UI SDK how-to guide​
Data types
Basic data types
The table below lists the basic data types supported and their specifications.
Data type
Declaration
Example
Boolean
"xsd:boolean"
"active": "xsd:boolean"
Decimal
"xsd:decimal"
"age": "xsd:decimal"
Enum
"@type: "Enum"
"@values": ["red", "blue", "yellow", "green"]
Integer
"xsd:integer"
"age": "xsd:integer"
Decimal
"xsd:decimal"
"age": "xsd:decimal"
String
"xsd:string"
"name": "xsd:string"
Temporal
"xsd:dateTime"
"DOB": "xsd:dateTime"
Data value optionality
Form values are mandatory by default and corresponding field names are rendered with an asterisk. To define a property as optional, use the "@type": "Optional" declaration.
An example with all basic types
Enum
The "Enum" data type in the example below specifies the colors a person likes - "@id": "Colors, "Person", "likes". This is rendered as a dropdown menu with the colors specified in the "@values" list.
Optional
The "age" of a "Person" is declared "Optional"
let frames =  {
    "@context": {
        "@base": "terminusdb:///data/",
        "@schema": "terminusdb:///schema#",
        "@type": "@context"
    },
    "Person": {
        "@key": {
            "@type": "Random"
        },
        "@type": "Class",
        "DOB": "xsd:dateTime",
        "active": "xsd:boolean",
        "age": {
		    "@class": "xsd:decimal",
			"@type": "Optional"
		},
        "name": "xsd:string",
        "likes": {
            "@id": "Colors",
            "@type": "Enum",
            "@values": [
                "red",
                "blue",
                "yellow",
                "green"
            ]
        }
    }
}
​
let type = "Person"
let mode = "Create"
​
return <FrameViewer
    frame = {frames}
    type = {type}
    mode = {mode}/>
Link Properties
Link properties enable links to other document or subdocument classes and are displayed as a Select components.
Link properties example
The example below demonstrates:
The property work_as linked to document class Job
The property lives_in linked to a subdocument class Address
let frames = {
   "@context": {
      "@base": "terminusdb:///data/",
      "@schema": "terminusdb:///schema#",
      "@type": "@context"
   },
   "Person": {
        "@key": {
        "@type": "Random"
        },
        "@type": "Class",
        "works_as": "Job", // Link to subdocument Job
	    "lives_in": "Address" // Link to subdocument Address
    },
    "Job": {
        "@key": {
        "@type": "Random"
        },
        "@type": "Class",
        "title": "xsd:string"
    },
    "Address": {
	    "@key": {
		    "@type": "Random"
		},
		"@subdocument": [],
		"@type": "Class",
		"Address Line 1": "xsd:string",
		"Code": "xsd:decimal",
		"Country": "xsd:string"
	}
}
​
let type = "Person"
let mode = "Create"
​
return <FrameViewer
    frame = {frames}
    type = {type}
    mode = {mode}/>

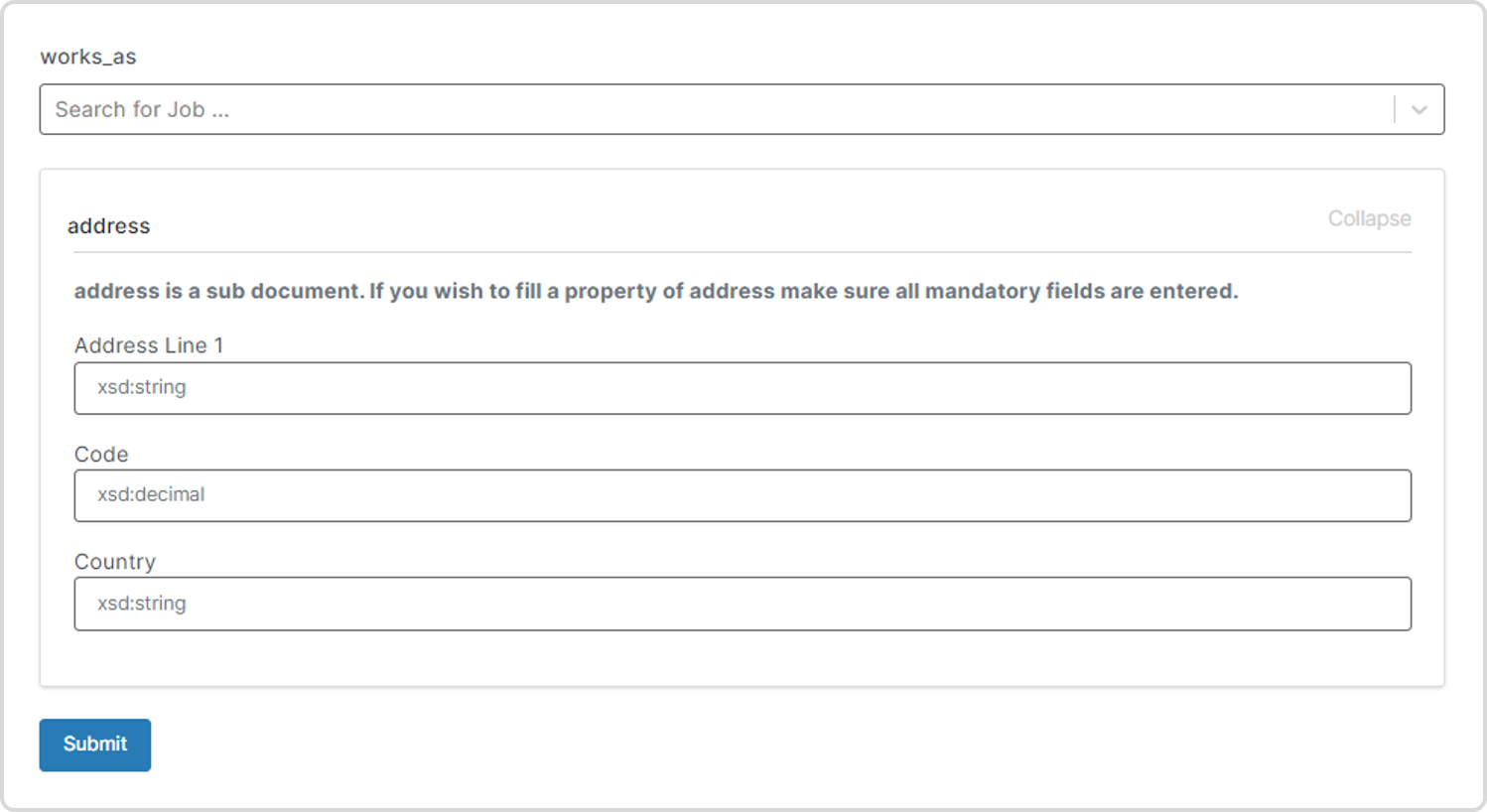

Screen-print/s of the output:
Set properties
A set specifies an unordered set of values of a class or data type.
Set property example
In the example below, the document Person consists of several nicknames - property "nickName" of "@type": "Set". A set consists of zero or multiple items.
let frames = {
    "@context": {
        "@base": "terminusdb:///data/",
        "@schema": "terminusdb:///schema#",
        "@type": "@context"
    },
    "Person": {
        "@key": {
            "@type": "Random"
        },
        "@type": "Class",
        "name": "xsd:string",
        "nickName": {
			"@class": "xsd:string",
			"@type": "Set"
	    }
    }
}
​
let type = "Person"
let mode = "Create"
​
return <FrameViewer
    frame = {frames}
    type = {type}
    mode = {mode}/>
Screen-print/s of the output:

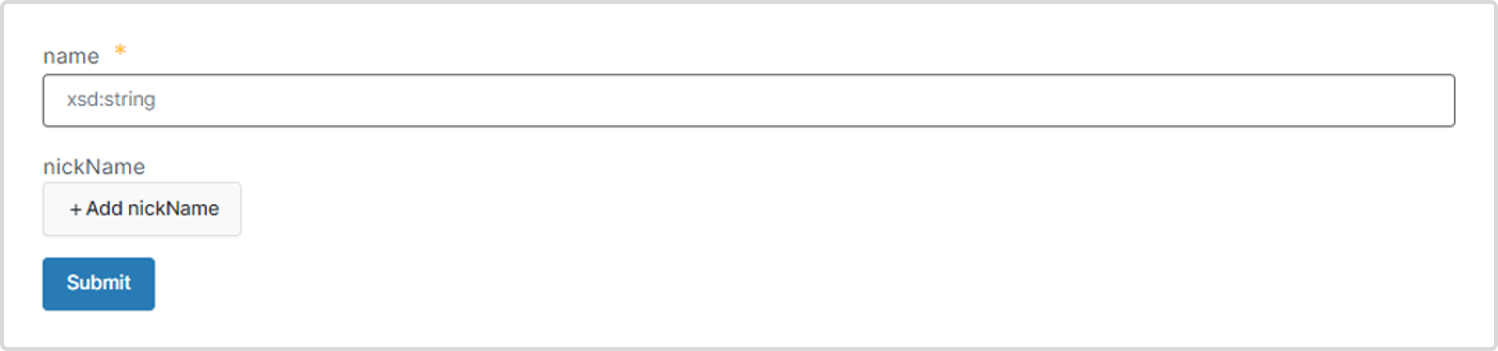

Click  +Add nickName to add a set of nickName properties.

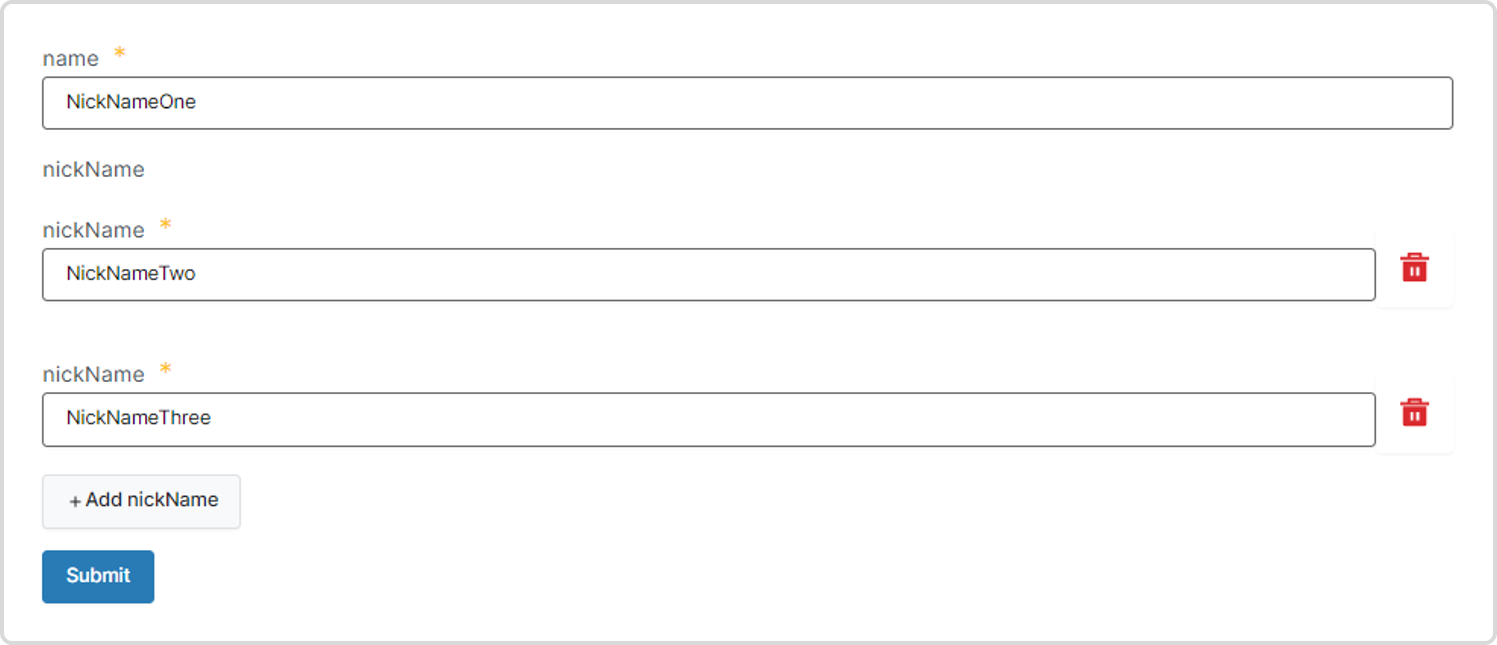

Populate multiple nickNamefields.
Document class set example
In the example below, a Person has a property works_as defined as a set that links to the document Job, representing a person with multiple jobs.
let frames = {
    "@context": {
        "@base": "terminusdb:///data/",
        "@schema": "terminusdb:///schema#",
        "@type": "@context"
    },
    "Person": {
        "@key": {
            "@type": "Random"
        },
        "@type": "Class",
        "name": "xsd:string",
        "works_as": {
            "@class": "Job",
            "@type": "Set"
        }
   },
   "Job": {
	   "@key": {
		  "@type": "Random"
	   },
	   "@type": "Class",
	   "title": "xsd:string"
    }
}
​
let type = "Person"
let mode = "Create"
​
return <FrameViewer
    frame = {frames}
    type = {type}
    mode = {mode}/>

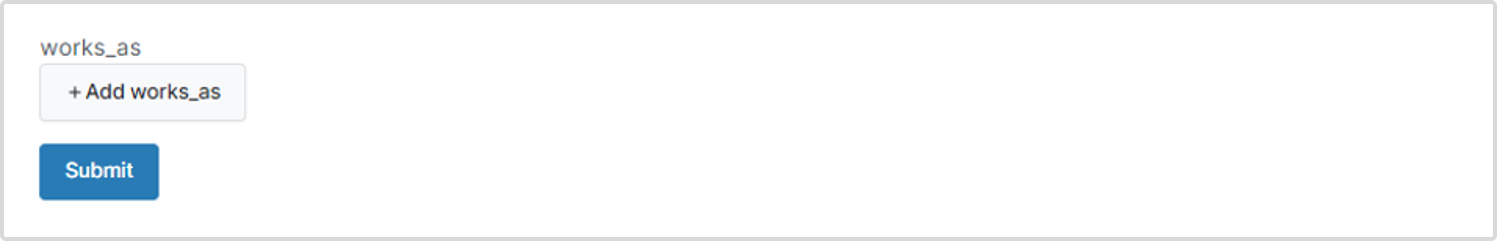

Screen-print/s of the output:

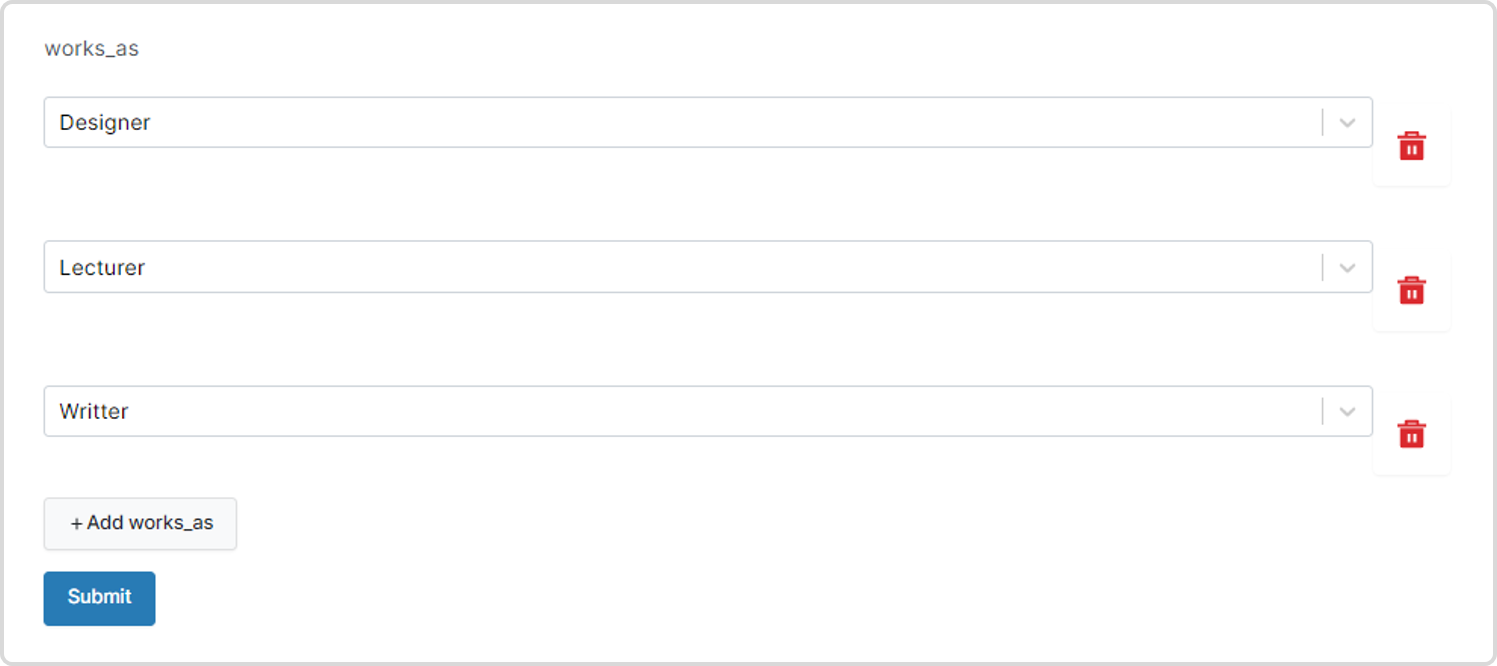

Populate multiple Jobs as shown below
Subdocument class set example
In the example below, a Person has a property lived defined as a set that links to the subdocument Address, representing a person's address history.
let frames = {
    "@context": {
        "@base": "terminusdb:///data/",
        "@schema": "terminusdb:///schema#",
        "@type": "@context"
    },
    "Person": {
        "@key": {
            "@type": "Random"
        },
        "@type": "Class",
        "name": "xsd:string",
        "lived": {
            "@class": {
                "@class": "Address",
                "@subdocument": []
            },
            "@type": "Set"
        }
    },
    "Address": {
        "@key": {
            "@type": "Random"
        },
        "@subdocument": [],
        "@type": "Class",
        "Address Line 1": "xsd:string",
        "Code": "xsd:decimal",
        "Country": "xsd:string"
	 }
}
​
let type = "Person"
let mode = "Create"
​
return <FrameViewer
    frame = {frames}
    type = {type}
    mode = {mode}/>

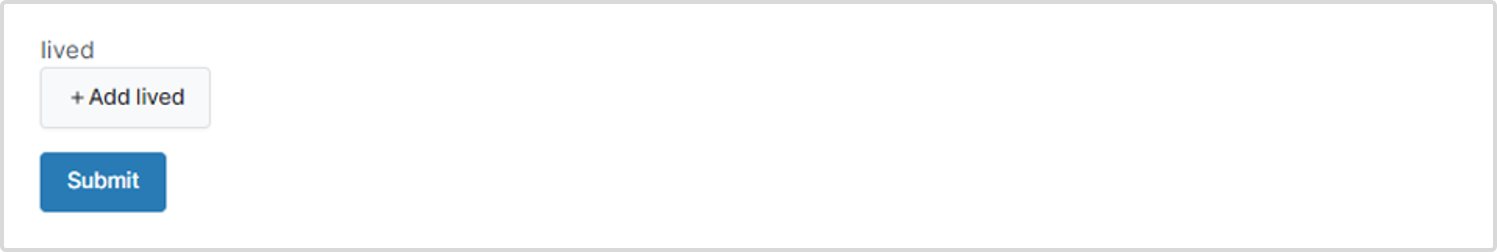

Screen-print/s of the output:

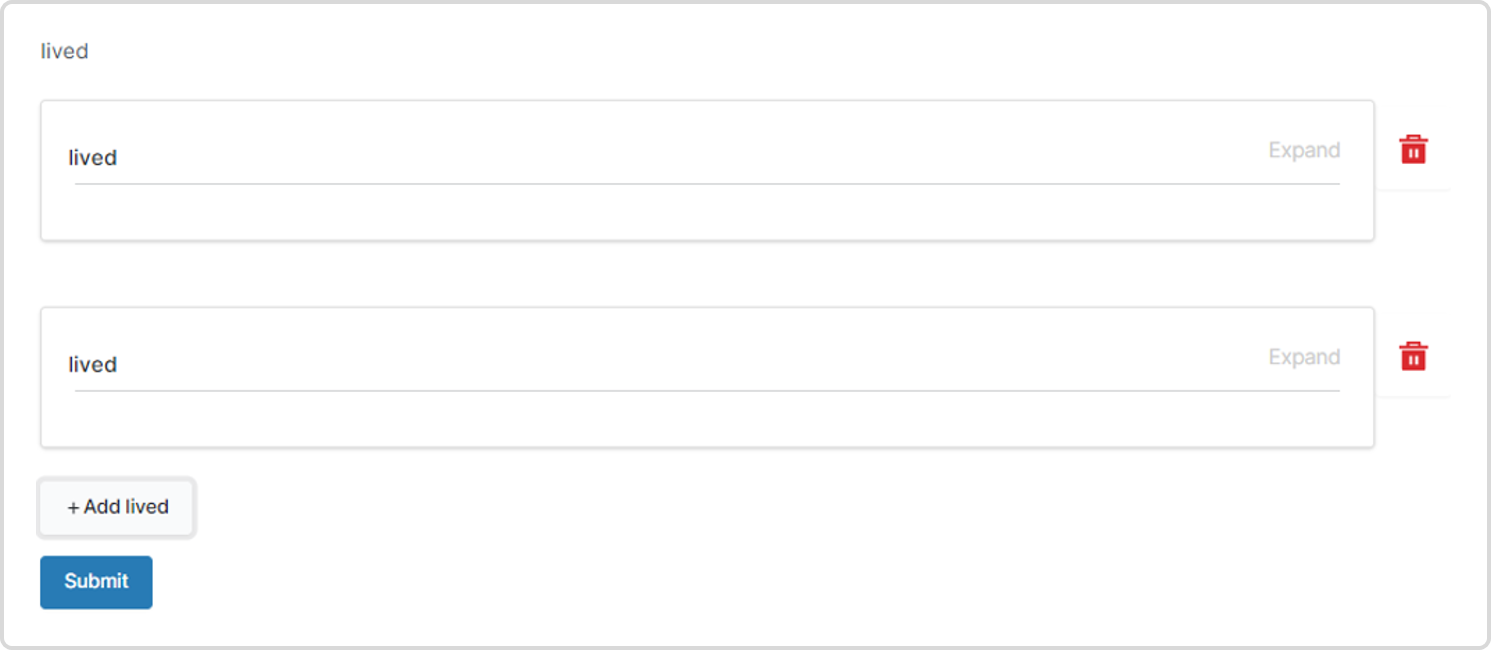

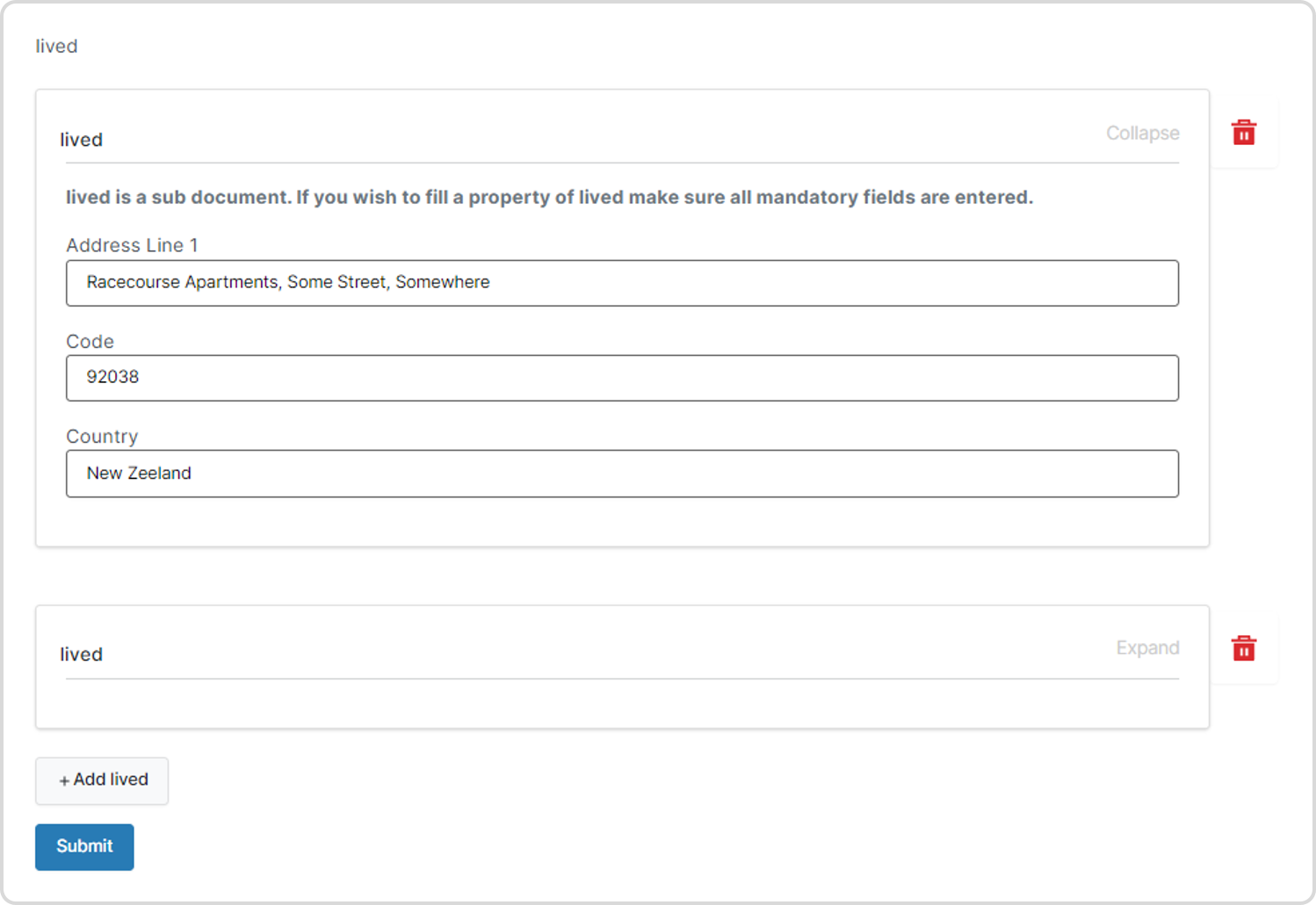

Click the lived card to expand the subdocument.
Fill in the fields for the subdocument.
List properties
A list specifies an ordered collection of values of a class or data type. An ordered collection means values are displayed in the order they are entered in the form.
List property example
In the example below, a Person has two properties ordered_property (a string data type) and has_task (a subdocument of type "List".)
let frames = {
    "@context": {
        "@base": "terminusdb:///data/",
        "@schema": "terminusdb:///schema#",
        "@type": "@context"
    },
    "Person": {
        "@key": {
        "@type": "Random"
        },
        "@type": "Class",
        "ordered_property": {
		    "@class": "xsd:string",
			"@type": "List"
		},
	    "has_task": {
		    "@class": "Tasks",
			"@type": "List"
		}
    },
    "Tasks": {
	    "@key": {
		    "@type": "Random"
        },
		"@subdocument": [],
		"@type": "Class",
		"Address Line 1": "xsd:string",
		"Code": "xsd:decimal",
		"Country": "xsd:string"
    }
}
​
let type = "Person"
let mode = "Create"
​
// call FrameViewer
return <FrameViewer
    frame = {frames}
    type = {type}
    mode = {mode}/>
Screen-print/s of the output:

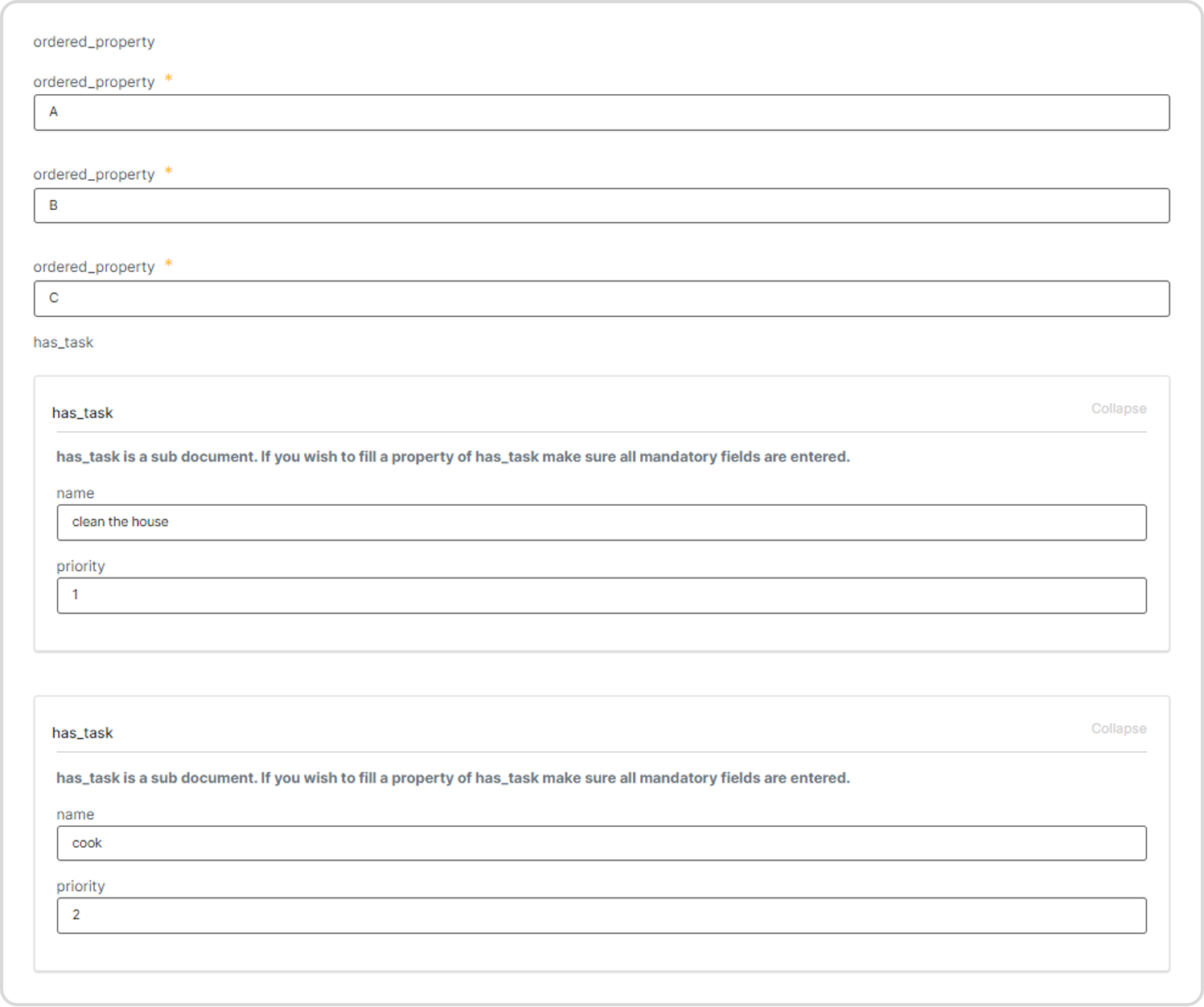

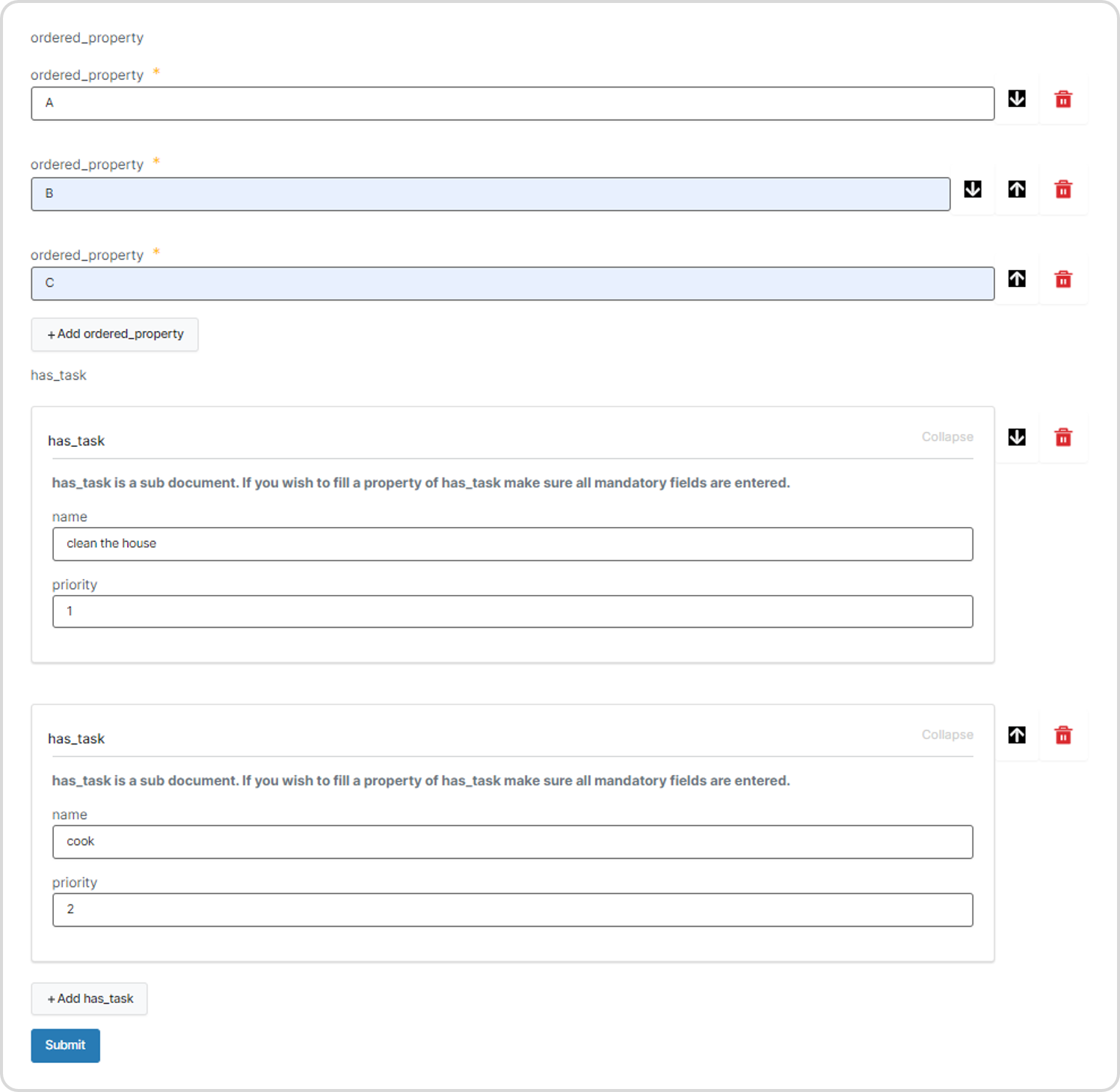

The form contains arrows to order entered values.
In View mode the form is displayed in the order it was created.
