Details for customizing your user interfaces using the Document UI SDK
Customize the look and feel of your forms with styles, widgets, and additional information.
​To get started read the Document UI SDK how-to guide​
The uiFrames parameter
Use the uiFrames parameter of the FrameViewer component to customize the look and feel of your forms. uiFrames supports two types of customizable properties:
Property classNames applicable to forms and fields.
Properties prefixed ui: applicable to fields only.
uiFrames classNames property
Use the classNames property to apply CSS or react bootstrap styles to your entire form or fields of a document.
uiFrames classNames example
The example below specifies the background color of the form using the className styles bg-dark p-5, and applies the style text-green to the name field of the Person document. Where a document property is not specified, the style is applied to the entire form. Note the style bg-dark is a React bootstrap class name.
let frames = {
    "@context": {
        "@base": "terminusdb:///data/",
        "@schema": "terminusdb:///schema#",
        "@type": "@context"
    },
    "Person": {
        "@key": {
            "@type": "Random"
        },
        "@type": "Class",
        "name": "xsd:string"
    }
}
​
// uiFrames configuration here
​
let uiFrames = {
   classNames: "bg-dark p-5",
   name: {
      classNames: "text-green"
   }
}
​
let type = "Person"
let mode = "Create"
​
return <FrameViewer
    frame= {frames}
    uiFrame= {uiFrames} // uiFrames parameter here
    type= {type}
    mode= {mode}/>

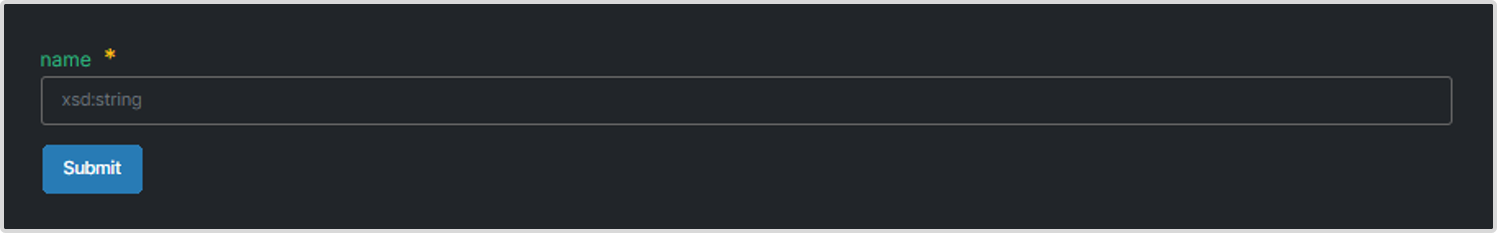

Screen-print/s of the output:
uiFrames ui: prefixed properties
The uiFrames parameter supports several customizable properties and widgets prefixed ui: and ui:widget respectively.
ui: prefixed properties
Summary of ui: prefixed properties.
Property
Description
Example
description
Add a field description.
name: { "ui:description": "A person's first name" }
placeholder
Add instructions in a field.
name: { "ui:placeholder": "Please enter your name" }
order
Specify the order in which fields are rendered.
"ui:order": ["name", "DOB", "email"] or "ui:order": ["name", "*"] to ensure "name" is rendered first.
ui:widget prefixed properties
Summary of ui:widget prefixed properties.
Property
Description
Example
hidden
Hide a field.
name: { "ui:widget": 'hidden' }
radio
Create a Yes (true) or No (false) radio button for a boolean field.
subscribe: { "ui:widget": 'radio' }
select
Create a Yes (true) or No (false) select/dropdown list for a boolean field.
subscribe: { "ui:widget": 'select' }
textarea
Create a text area for multiline input.
bio: { "ui:widget": 'textarea' }
password
Create obfuscated password entry.
password: { "ui:widget": 'password' }
color
Create a color picker.
color: { "ui:widget": 'color' }
Boolean data types
By default, a field of data type boolean is rendered as a checkbox.
Example demonstrating all properties
let frames = {
   "@context": {
        "@base": "terminusdb:///data/",
        "@schema": "terminusdb:///schema#",
        "@type": "@context"
    },
    "Person": {
        "@key": {
            "@type": "Random"
        },
        "@type": "Class",
        "name": "xsd:string",
        "email": "xsd:string",
        "password": "xsd:string",
        "color": "xsd:string",
        "notes": "xsd:string",
        "subscribe": "xsd:boolean",
        "created": "xsd:dateTime",
        "modified": "xsd:dateTime",
   }
}
​
let uiFrames = {
    created: {
        "ui:widget": 'hidden'
    },
    modified: {
        "ui:widget": 'hidden'
    },
    name: {
        classNames: "text-green",
        "ui:placeholder": "Enter your name..."
    },
    email: {
        classNames: "text-green",
        "ui:description": "Your email is securely stored and will not be not be shared",
        "ui:placeholder": "Enter your email address..."
    },
    password: {
        "ui:widget": 'password',
        "ui:description": "Your password must be at least eight characters",
        "ui:placeholder": "Enter your password..."
    },
    color: {
        "ui:widget": 'color',
        "ui:description": "Choose a color for your account"
    },
    notes: {
        classNames: "text-green",
        "ui:widget": 'textarea',
        "ui:placeholder": "Enter a brief description of your role..."
    },
    subscribe: {
        "ui:widget": 'radio',
        "ui:description": "Would you like to subscribe to our newsletter?"
    },
    "ui:order": ["name", "email", "password", "*"]
}
​
let type = "Person"
let mode = "Create"
​
return <FrameViewer
    frame = {frames}
    uiFrame = {uiFrames}
    type = {type}
    mode = {mode}/>

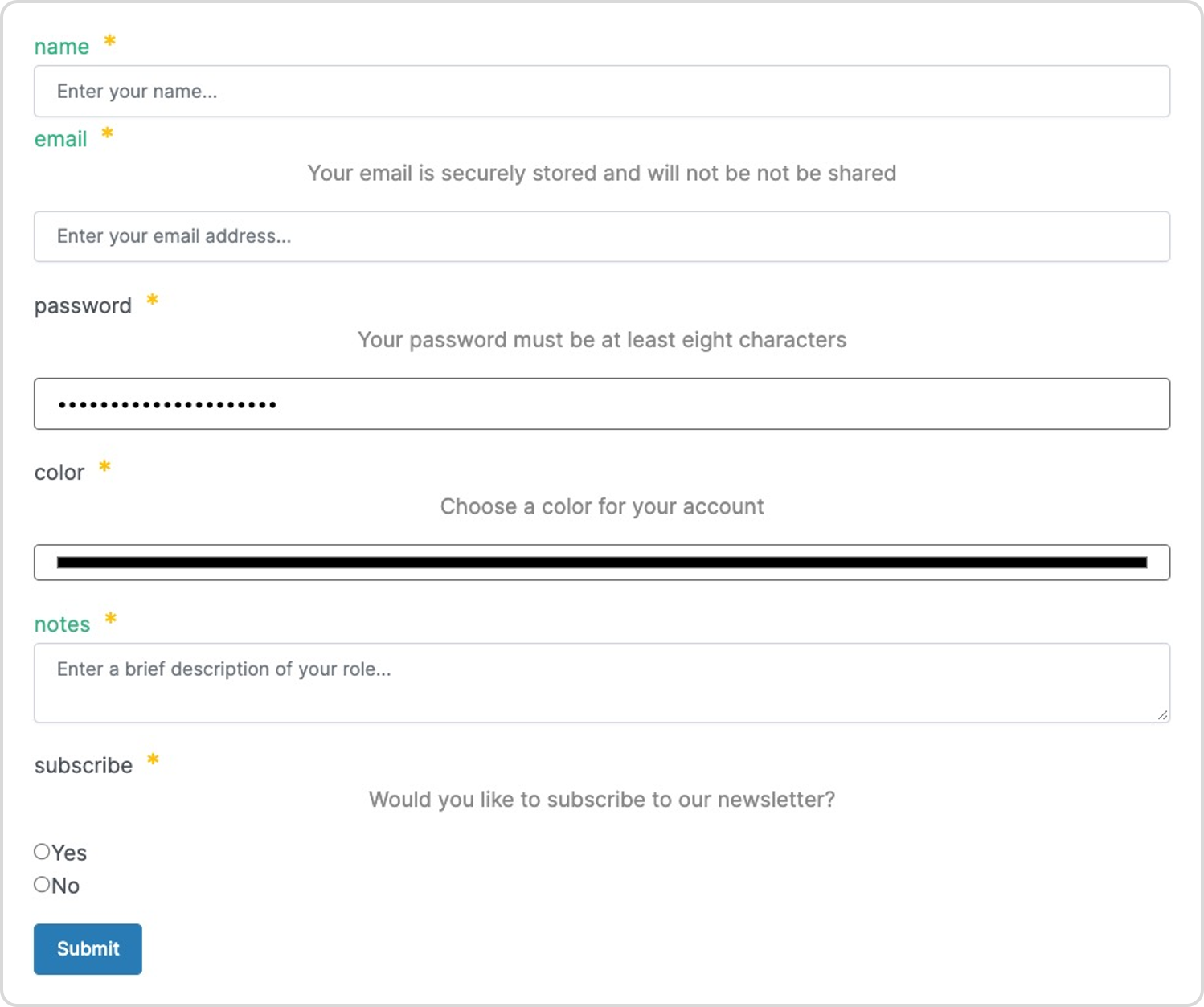

Screen-print/s of the output:
Customize sets and lists
Apply widgets to sets and lists. The example below hides the set nickName.
let frames = {
    "@context": {
        "@base": "terminusdb:///data/",
        "@schema": "terminusdb:///schema#",
        "@type": "@context"
    },
    "Person": {
        "@key": {
            "@type": "Random"
        },
        "@type": "Class",
        "name": "xsd:string",
        "nickName": {
		    "@class": "xsd:string",
			"@type": "Set"
		}
    }
}
​
let uiFrames = {
   nickName: {
      "ui:widget": 'hidden'
   }
}
​
let type = "Person"
let mode = "Create"
​
return <FrameViewer
    frame= {frames}
    uiFrame= {uiFrames}
    type= {type}
    mode= {mode}/>
Custom widgets
Develop react functions to create custom widgets.
let frames = {
    "@context": {
        "@base": "terminusdb:///data/",
        "@schema": "terminusdb:///schema#",
        "@type": "@context"
    },
    "Person": {
        "@key": {
            "@type": "Random"
        },
        "@type": "Class",
        "name": "xsd:string"
    }
}
​
// React function to create a custom widget
​
function renderNameField(props) {
   return <Card bg = "success">
      <Alert>{"`${props.id}` is a custom field ..."}</Alert>
   </Card>
}
​
let uiFrames = {
   name: {
      "ui:widget": renderNameField
   }
}
​
let type = "Person"
let mode = "Create"
​
return <FrameViewer
    frame= {frames}
    uiFrame= {uiFrames}
    type= {type}
    mode= {mode}/>

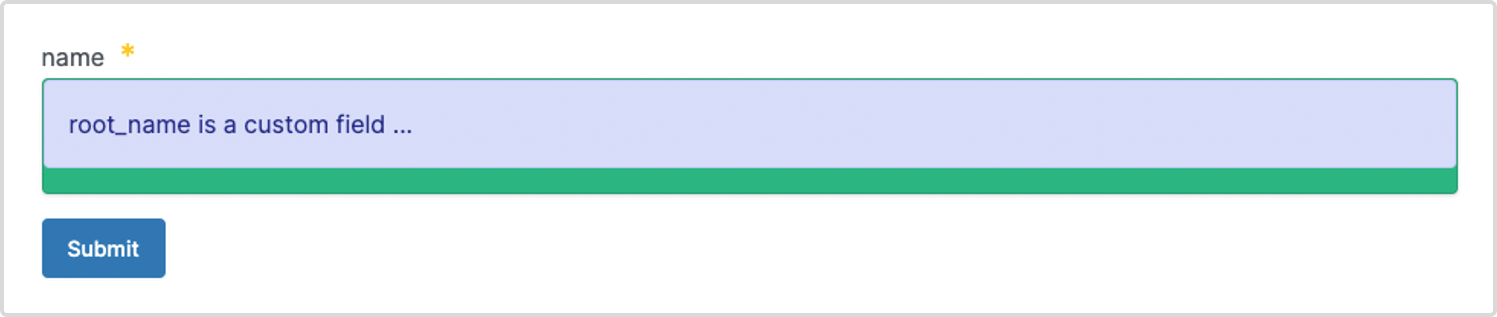

Screen-print/s of the output:
